Hostgroup Monthly Network Centile

Description

Goal

The goal of this report is to give you statistics about the centile and the average usage of your inbound and outbound bandwith by interface. This report os only designed to work on month.

How to interpete the report?

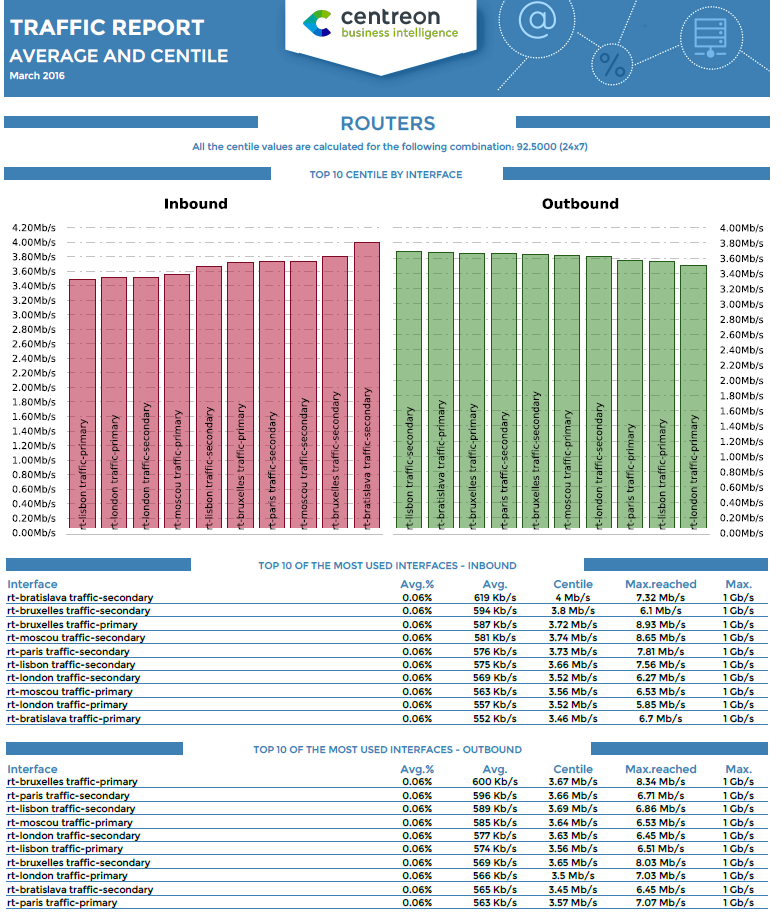

On the first page, you have 3 differents information :

• Two graphs representing the 10 interfaces having the maximum centile for inbound and outbound traffic

• The 10 interface having the maximum average inbound trafic in percentage

• The 10 interface having the maximum average outbound trafic in percentage

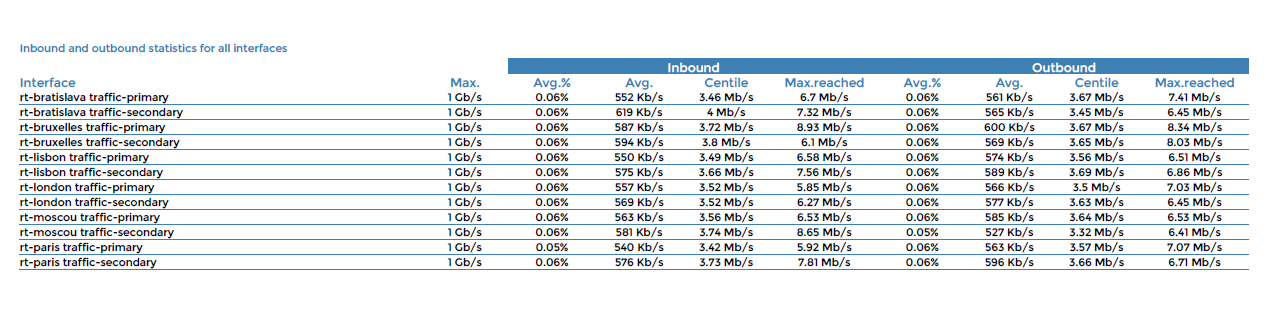

On the other page(s), there is a listing of all interfaces, order by host and service name where you can find inbound and outbound traffic statistics.

Parameters :

Parameters needed by the reports are :

• A start date corresponding to the month on which you want to generate the report (Corresponding to the start date on Centreon MBI interface).

• The following Centreon objects

Parameter	Parameter type	Description
Hostgroups	Dropdown list	Host Group to use
Host Categories	Multi select	Host Categories to use
Trafic service categories	Dropdown list	Service category containing trafic services
Time period for average usage	Dropdown list	Low threshold of bandwidth usage
Centile/Timeperiod	Dropdown list	Combination to use for centile statistics
Inbound traffic metric	Dropdown list	Metric name of the inbound traffic
Outbound traffic metric	Dropdown list	Metric name of the outbound traffic

Prerequisites

• Percentile configuration has to be correct in General Option > ETL tab

• To ensure consistency in graphs and statistics, some prerequisites are necessary regarding to performance data returned by plugins. Performance data are data returned by a plugin after the “pipe” - “|” , these data have to be returned as follow

  output-plugin | traffic_in=valueunit;warning_treshold;critical_treshold;minimum;maximum traffic_out=value


It is important to make sure that plugins return the maximum value because lot of statistics are based on percentage, calculated using this maximum value. Be sure that the traffic plugins return one metric for traffic in and one for traffic out. The unit must be Bits/sec.
