BV-BA-Current-Health-VS-Past

Description

This report displays the current health of business activities. It also displays the availability on a previous selected period.

How to interpret the report?

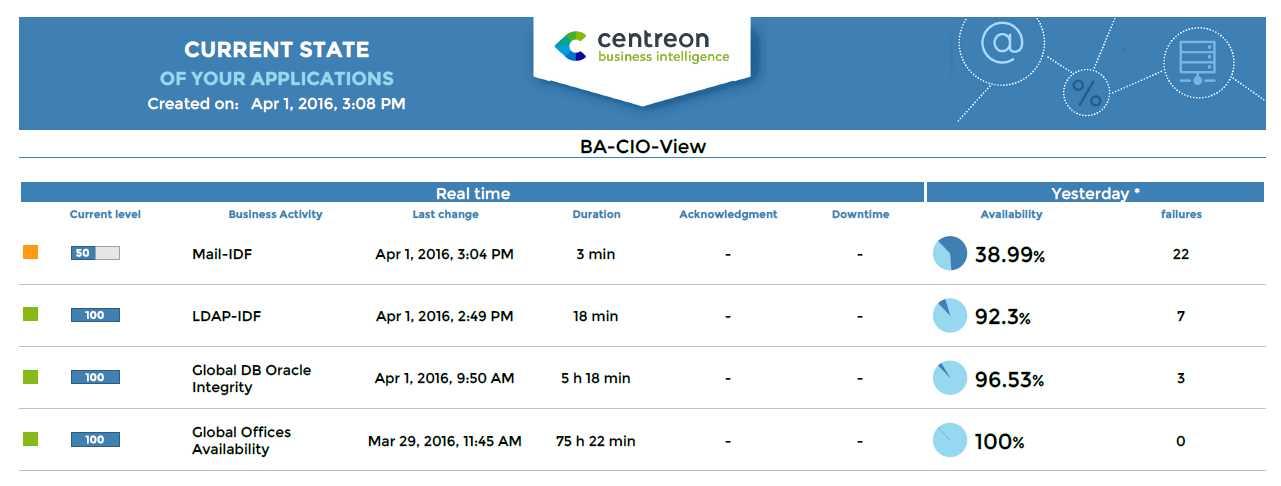

For a given business view, the report displays the realtime health state of each business application, the last state change and duration, indicate if the application has been acknowledged or in downtime. Depending on the parameter choosen, the report display the availability and failures of each application.

Parameters

Parameters needed by the report are :

Parameters	Type	Description
logo	List box	Logo to display on the header of the report
title	Text field	Display a report title
business View	List box	Select the business view on which generate the report
compare_with	Radio button	Display historical data depending on the chosen period
show the reporting timeperiod	Radio botton	Show or hide the default timeperiod behind business activity
title	text field	Set a specific title to the report
time period	Dropdown list	Apply the “Default” time period or a specific one*

* If different from “Default”, be sure that the selected time period is defined as a Default or Extra reporting timeperiod in the BA configuration or they’ll not appear in the report

Pre-requis

• Disposer de Centreon BAM >= 3.0

• Disposer de Centreon Broker >= 2.8.0

• Superviser au moins une activité métier et la lier à une vue business.
