BusinessView-BusinessActivities-Availabilities-1

Description

This report displays availability and incidents statistics of business activities belonging to a business view. This report is generated using the default reporting time period of each business activity.

How to interpret this report ?

The first page displays a focus on :

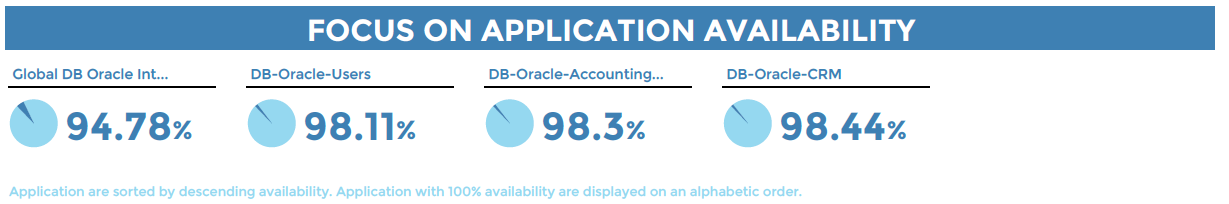

  • The availability

../_images/bv-ba-availabilities-1_page1-1.png

Meteo icons are displayed regarding the SLA defined in each business activity.

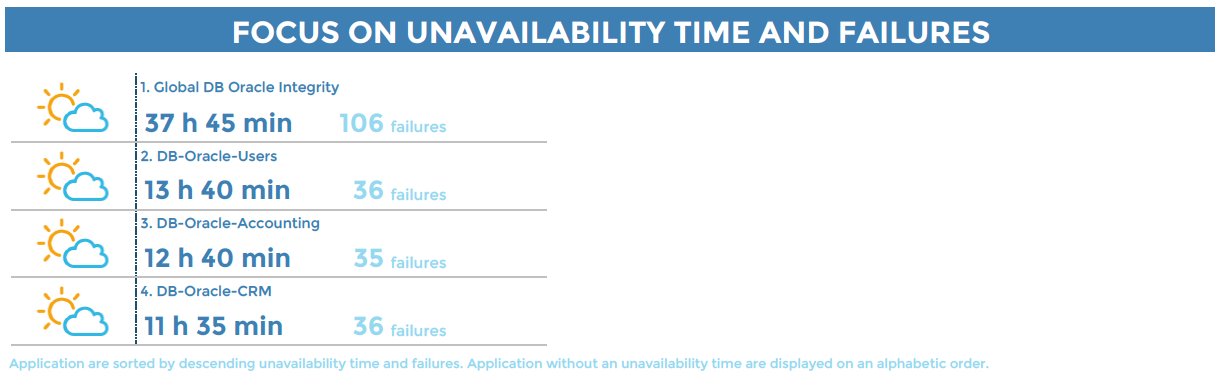

  • The unavailable time

../_images/bv-ba-availabilities-1_page1-2.png

Meteo icons are displayed regarding the SLA defined in each business activity, in minutes.

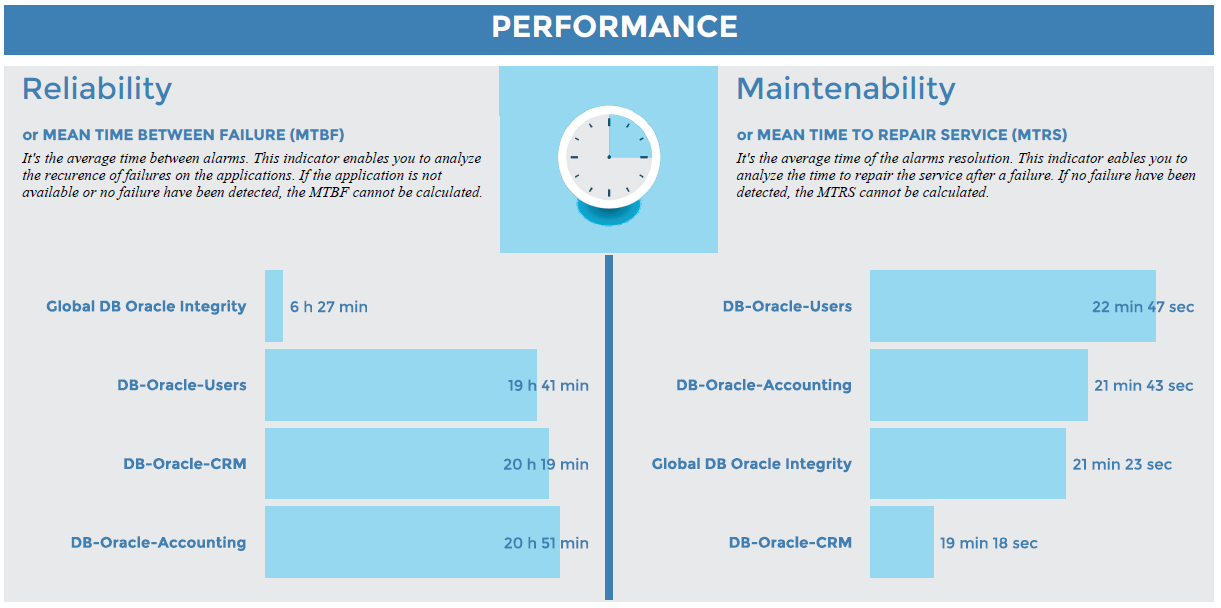

  • The reliability and maintenability

../_images/bv-ba-availabilities-1_page1-3.png

The next pages display a sub report for each business activity belonging to the business view. You may find information regarding :

  • The availability, unavailable time, downtime, performance and number of events.

../_images/bv-ba-availabilities-1_page2-1.png

Meteo icons are displayed regarding the SLA defined in each business activity.

  • The evolution of the availability, performance and events in the past months

../_images/bv-ba-availabilities-1_page2-2.png

  • An availability calendar displaying only the day when the availability was inferior to 100%.

  • If the availability of a day was equal to 100%, the cell background color is a light grey with no values displayed.

  • If data aren’t present on a specific day, the cell background color is white with no values displayed.

../_images/bv-ba-availabilities-1_page2-3.png

  • In option, a list of events that appeared on the business activity during the period. KPI that are responsible of the events are also displayed.

../_images/bv-ba-availabilities-1_page2-4.png

Parameter :

Parameters needed by report are:

  • A start date corresponding to the month on which you want to generate the report (Corresponding to the start date on Centreon MBI interface).

  • Following objects :

Parameter

Type

Description

logo

Dropdown list

Logo to display in the header

business View

Dropdown list

Select the Business View to generate the report on

hide event

Radio button

Option to hide the events list appeared on the Business activity

calendar color

Radio button

Option to color the calendar using green/orange/red based on SLA

title

text field

Set a specific title to the report

time period

Dropdown list

Apply the “Default” time period or a specific one*

* If different from “Default”, be sure that the selected time period is defined as a Default or Extra reporting timeperiod in the BA configuration or they’ll not appear in the report

Pre-requisites

  • Centreon BAM >= 3.0

  • Centreon Broker >= 2.8.0

  • Monitore at least one business activity and having this BA linked to one business view

  • Having at least one month of data coming from Centreon BAM.
