Hostgroup-Host-Details-1

Description

Goal: The report gives detail statistics on availability, alarms, storage usage, memory and CPU, for all equipments of a hostgroup given in entrance.

How to interpret the report?

For each equipment, the report is divided into four parts:

The first one diplays detailed statistics on the equipment’s availability.

The second one diplay detailed statistics on the equipment’s performances ( CPU and Memory)

On the third one, Storage capacity is detailed by services and services categories..

The last one displays the distribution of inbound and outbound traffic of all interfaces of the equipment.

First part

Second part

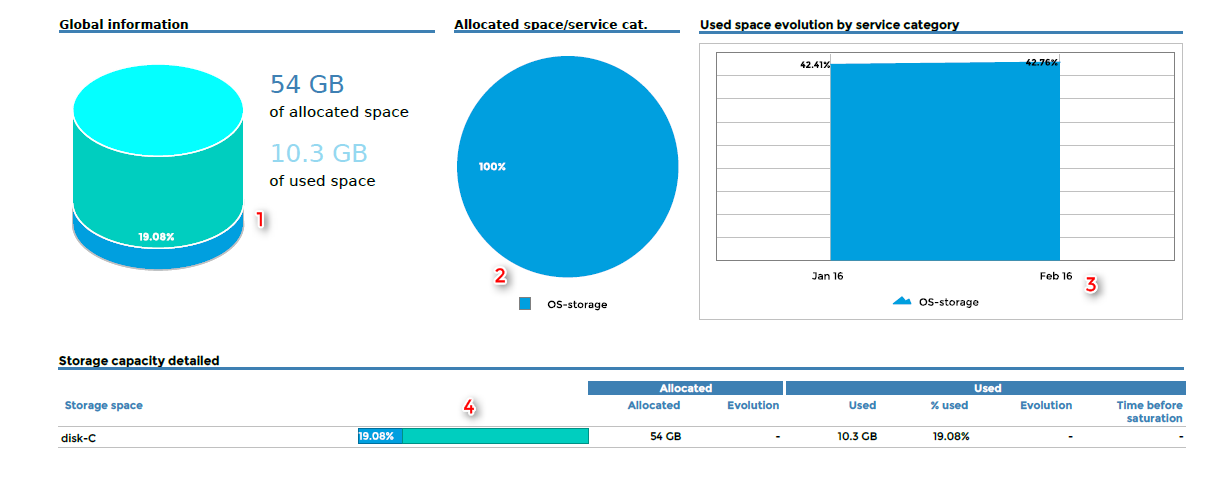

Third part

1 - Storage statistics at the last day of the reporting period

2 - Storage statistics at the last day of the reporting period

3 - Storage statistics at the last day of each month

4 - Storage statistics at the last day of the reporting period versus the last day of the previous period

Fourth part

Parameters

Parameters needed by report are:

• The reporting period

• The following Centreon object:

Parameter	Parameter type	Description
Time period	Dropdown list	Time period to use
Interval	Text field	Number of month to display in evolution graphs
Hostgroup	Dropdown list	Hostgroup to select
Host Category	Multi Select	Host category to select
CPU service category	Dropdown list	Service category containing CPU service(s)
CPU metric(s)	Multi Select	Select metric(s) to use for CPU statistics
Storage service category	Multi Select	Storage service categories containing the storage service(s)
Storage Metric(s)	Multi Select	Metric to exclude from the storage statistics
Memory service category	Dropdown list	Service category containing memory service(s)
Memory metric(s)	Multi select	Select metric(s) to use for memory statistics
Traffic service category	Dropdown list	Service category containing traffic service(s)
Traffic In metric	Dropdown list	Select inbound metric traffic
Traffic Out metric	Dropdown list	Select outbound metric traffic

Prerequisites

To ensure consistency in graphs and statistics, some prerequisites are necessary regarding to performance data returned by plugins.

Performance data are data returned by a plugin after the “pipe” - “|” - , these data have to be returned as follow:

output-plugin | metric1=valueunit;warning_treshold;critical_treshold;minimum;maximum metric2=value ....

It is important to make sure that plugins return the maximum value because lot of statistics are based on percentage, calculated using this maximum value. Be sure that the storage plugins, memory plugin and traffic plugin return this maximum value. The unit must be Bytes for Storage and memory plugin and Kbps for the traffic plugin.

Warning

This report is compatible with the timeperiod 24x7 only. This timeperiod have to be configured on the menu “General options | Capacity statistic agregated by month | Live services for capacity statistics calculation”
