BusinessView-BusinessActivities-Availabilities-Calendar¶
Description¶
This report displays statistics about business activities availability and incidents. Statistics are displayed by month and by day, in calendars. This report is generated using the default reporting time period of each business activity.
How to interpret this report
The first calendar displays availability of your business activities by month. Cells coloration is done using the SLA defined for each business activity in percentage (in “Extended Information” tab). If the SLAs are not defined in the BA configuration, values are displayed in cells if availability is inferior to 100% or unavailability > 0 secondes. The timeperiod considered is the “Default reporting period” selected for each business activity (in “Configuration tab”).
The second calendar displays unavailable time and incidents of your business activities by month. Cells coloration is done using the SLA defined for each business activity in minutes. If the SLAs are not defined in the BA configuration, values are displayed in cells if availability is inferior to 100% or unavailability > 0 secondes. The timeperiod considered is the “Default reporting period” selected for each business activity.

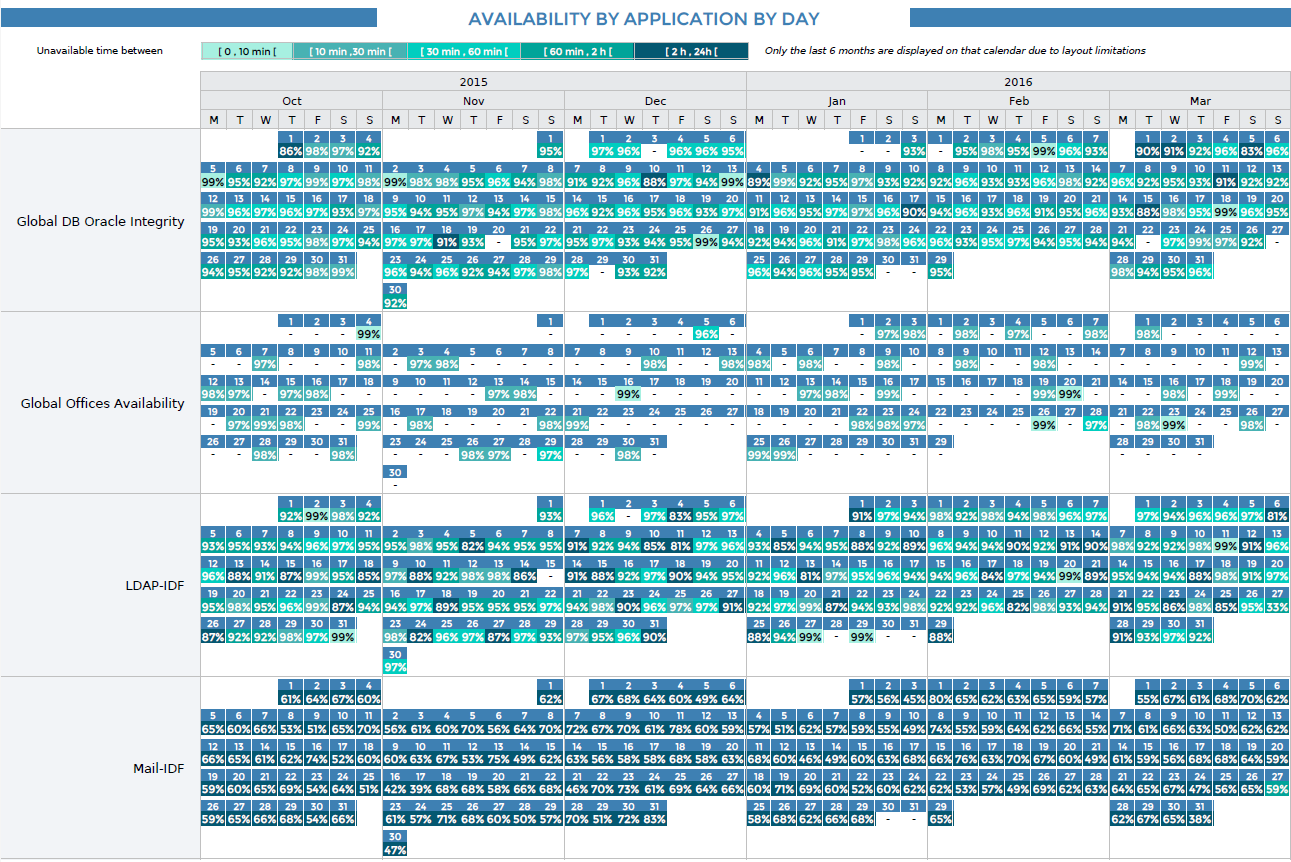

The third calendar displays availability for each business activity by day. Cells coloration is done based on SLA tresholds given in parameter of that report.
Parameter :¶
Parameters needed by report are:
A start date corresponding to the month on which you want to generate the report (Corresponding to the start date on Centreon MBI interface).
Following objects :
Parameter |
Type |
Description |
|---|---|---|
logo |
Dropdown list |
Logo to display in the header |
business View |
Dropdown list |
Select the Business View to generate the report on |
sla 1* |
Text field |
Time in minutes corresponding to the high treshold of the first interval [0 min, sla1 [ |
sla 2* |
Text field |
Time in minutes corresponding to the high treshold of the second interval [sla1, sla2 [ |
sla 3* |
Text field |
Time in minutes corresponding to the high treshold of the third interval [sla2, sla3 [ |
sla 4* |
Text field |
Time in minutes corresponding to the high treshold of the fourth interval [sla3, sla4 [ |
title |
text field |
Set a specific title to the report |
time period |
Dropdown list |
Apply the “Default” time period or a specific one** |
* SLA tresholds are displayed above the calendar displaying availabilities by day.
** If different from “Default”, be sure that the selected time period is defined as a Default or Extra reporting timeperiod in the BA configuration or they’ll not appear in the report
Pre-requisites¶
Centreon BAM >= 3.0
Centreon Broker >= 2.8.0
Monitore at least one business activity and having this BA linked to one business view
Having at least one month of data coming from Centreon BAM
