Hostgroup-Electricity-Consumption-1

Description

This report displays statistics on the energy consumption of the hosts connected to an uninterrupted power supply (UPS).

How to interpret the report

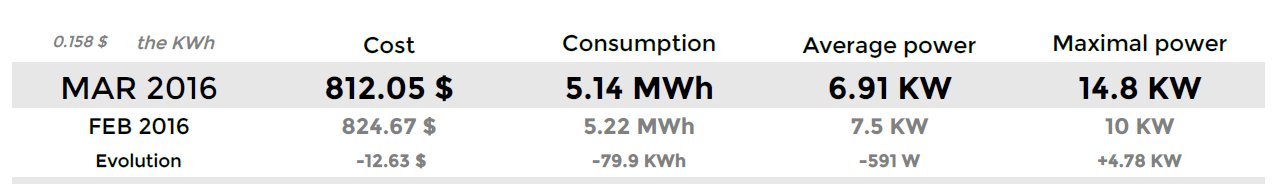

For a given host group, reporting period and price per kilowatt-hour, the first table displays the cost, consumption, average power and maximum power reached for month N. A reminder of these values for the previous month is provided along with the evolution over time.

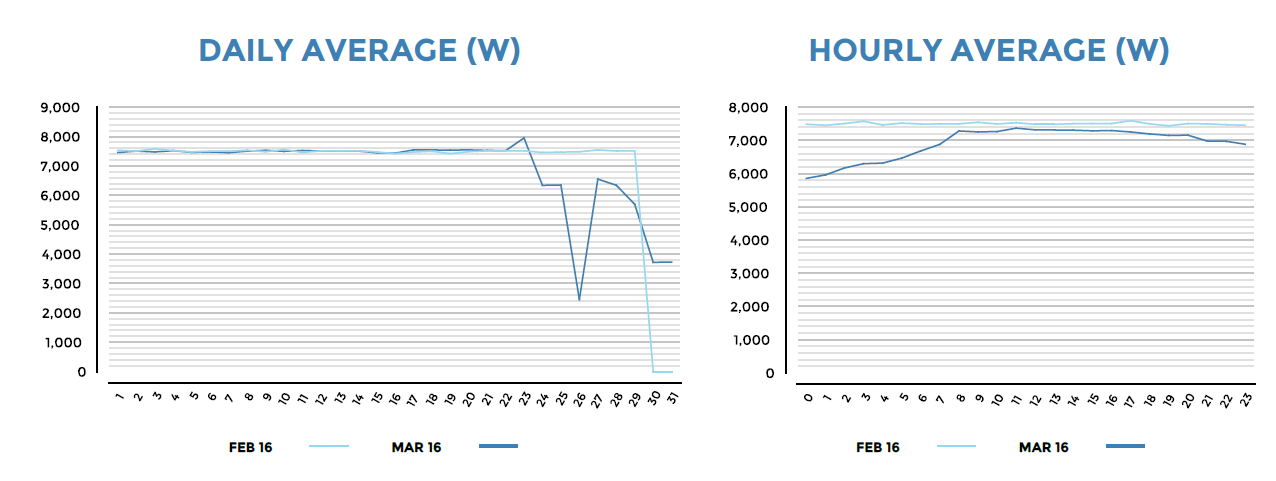

The two next graphs display the average power used per day of the month and per hour of the day. A comparison with the previous month also appears.

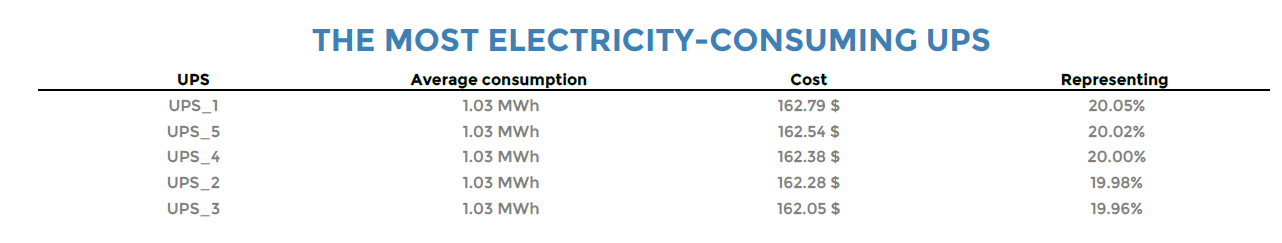

Then, the top five most energy-consuming UPSs are displayed, along with consumption distribution by UPS, average consumption and cost by UPS.

Note

If the host group contains more that five UPSs, only the four most energy-consuming ones will be displayed. A fifth category will include the remaining UPSs.

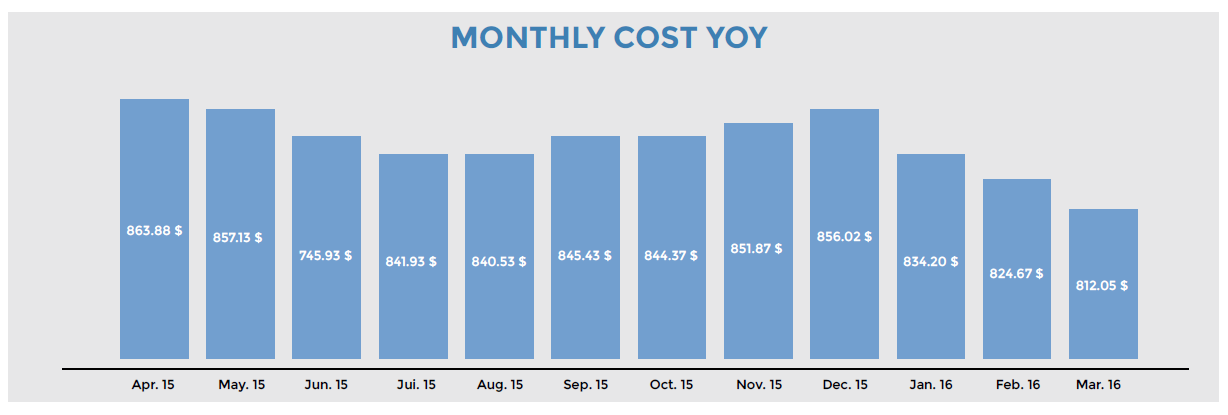

Finally, a graph is shown of the monthly cost year over year (YOY).

Parameters

Parameters required for the report:

• The reporting period

• The following Centreon objects:

Parameters	Type	Description
Time period	Dropdown list	Select time period.
Host group	Dropdown list	Select the host group.
Host category	Multi select	Select host categories.
Service category	Multi select	Select service categories containing the power indicators.
Select metrics to include	Multi select	Select the metric name of the output power.
Prix KWh	Text	Enter price of the kilowatt-hour.

Prerequisites

The prerequisites for the report are:

• Monitoring of the output power of the UPSs.

• Creation of a service category containing all the power-output indicators.

• Sufficient historical data for the evolution graphs.

Note

UPS consumption corresponds to the consumption by all hosts connected to the UPS.
