BusinessView-BusinessActivities-Availabilities-1

Description

This report displays statistics about application availability and events for a business view. It is generated using the default reporting time period for each business activity configured in the Centreon BAM module.

How to interpret the report

The first page presents a focus on the following attributes:

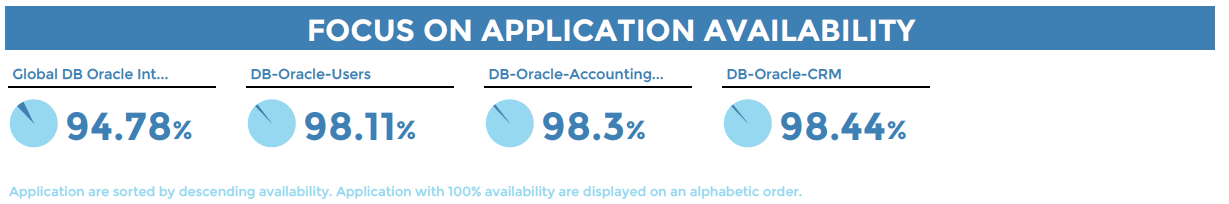

  • Availability

../_images/bv-ba-availabilities-1_page1-1.png

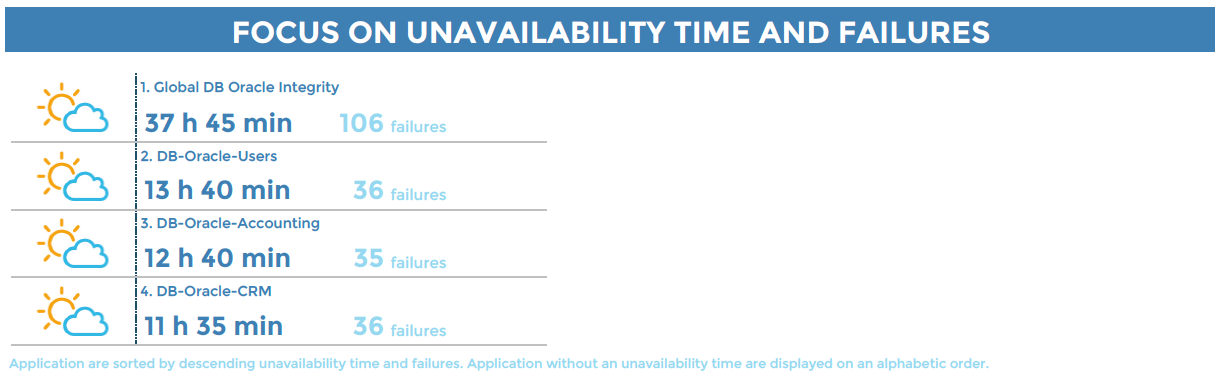

  • Unavailability

../_images/bv-ba-availabilities-1_page1-2.png

The weather icons change according to the SLAs defined in each business activity, in terms of minutes.

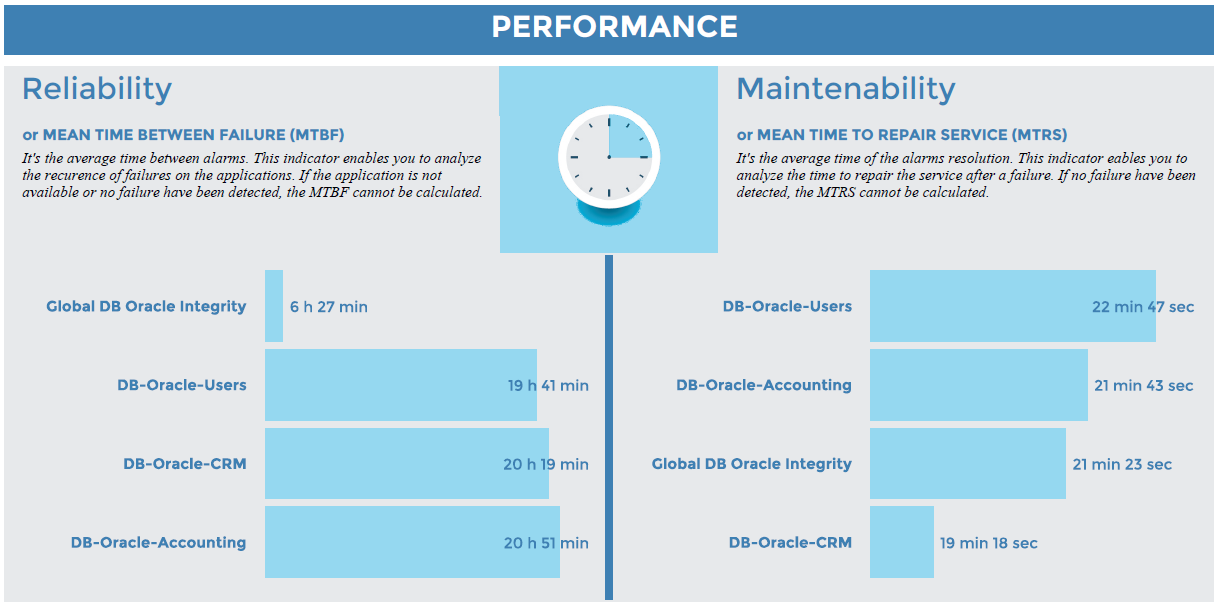

  • Reliability and Maintenability

../_images/bv-ba-availabilities-1_page1-3.png

The following pages display additional statistics for each business activity in the business view:

  • Availability, unavailability, downtime, service performance index and number of events that occurred.

../_images/bv-ba-availabilities-1_page2-1.png

The weather icons change according to the SLAs defined in each business activity, in terms of percentages and minutes.

  • Change in availability, performance and number of events.

../_images/bv-ba-availabilities-1_page2-2.png

  • An availability calendar displays only days when availability was below 100%.

  • For days with 100% availability, the cell background color appears in a light grey with no values displayed.

  • If data aren’t present on a specific day, the cell background color appears in white with no values displayed.

../_images/bv-ba-availabilities-1_page2-3.png

  • As an option, the list of events appears with their respective key performance indicators (KPIs).

../_images/bv-ba-availabilities-1_page2-4.png

Parameters:

Parameters required for the report:

  • Start date representing the month in which you want to generate the report (matching the start date in the Centreon MBI interface)

  • The following Centreon objects:

Parameter

Type

Description

logo

Dropdown list

Select logo to display in header.

Business View

Dropdown list

Select a Business View for generating the report.

hide event

Radio button

Hide events list in the Business activity.

calendar color

Radio button

Color the calendar in green/orange/red based on SLA.

title

text field

Specify report title.

time period

Dropdown list

Specify reporting time period.*

* If different from “Default”, be sure that the selected time period is defined as a Default or Extra reporting time period in the BA configuration or it will not appear in the report.

Prerequisites

  • Centreon BAM >= 3.0

  • Centreon Broker >= 2.8.0

  • Monitoring of at least one business activity to be linked to one business view

  • One month minimum of data from Centreon BAM module.
