Business View Availability,Performance and Alerts by month

This widget only works with Centreon BAM data.

Description

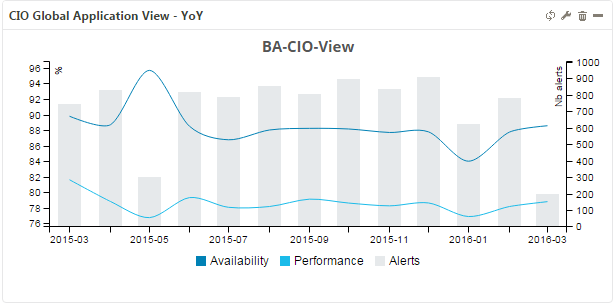

This widget presents a graph showing the availability, performance and alerts of one Business View (logical grouping of BAs) by month over the last 12 months.

../_images/mbi-bv-availability-graph-month.png

Parameters

Menu description

  • Select a business view from Centreon BAM.

  • Select the reporting period.

  • Chart type: Indicate type of graph.

  • Min value for graph (leave empty for self-adjustement): Minimum value for Y-axis height.

  • Max value for graph (leave empty for self-adjustement): Maximum value for Y-axis height.

  • Refresh Interval (seconds): Sets automatic refresh time for widgets.

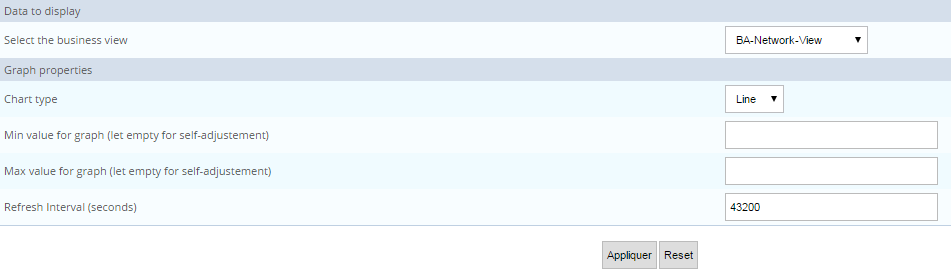

Example

../_images/mbi-bv-availability-graph-month_param.png
