Configure a proxyΒΆ

You may need to use your proxy in the 2 following cases:

  • If you have to use a proxy to access your Map 4 server from your computer
  • If your computer is behind a proxy and you have to go through it to access internet

To tell Map 4 to use a proxy, follow these steps:

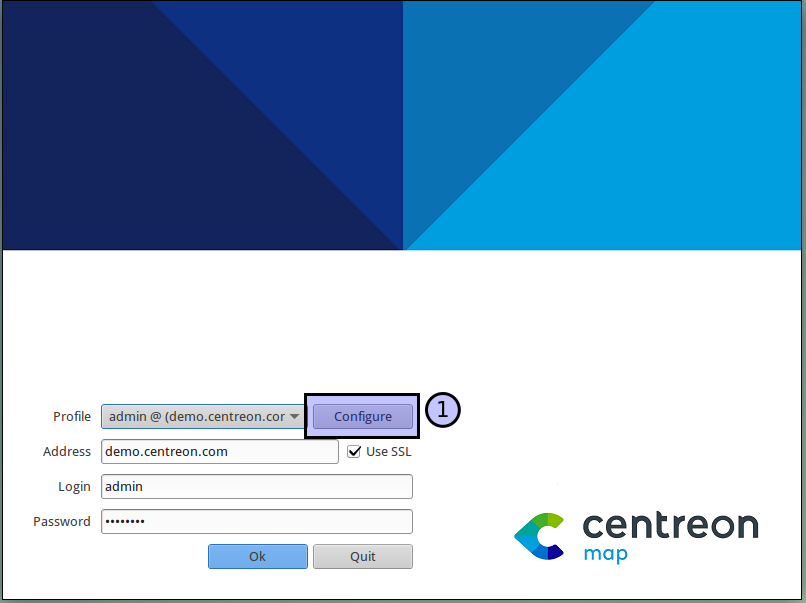

  • On the spash screen click the “Configure” button
../../_images/desktop_client_configure_button.png

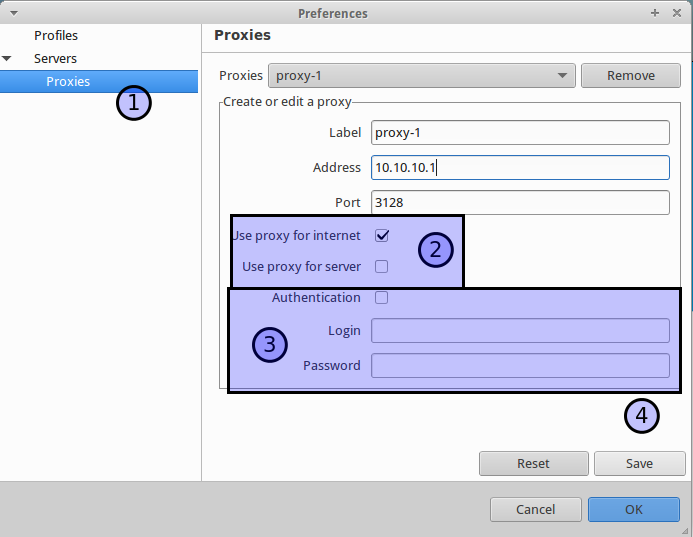

  • On the left panel select “Server” -> “Proxy”
  • Add a label, address and port of your proxy
  • Select if the proxy will be used to access internet or to access the Map 4 server (you can select both)
  • Enter authentication information if necessary
  • Click “Save”
../../_images/desktop_client_configure_proxy.png

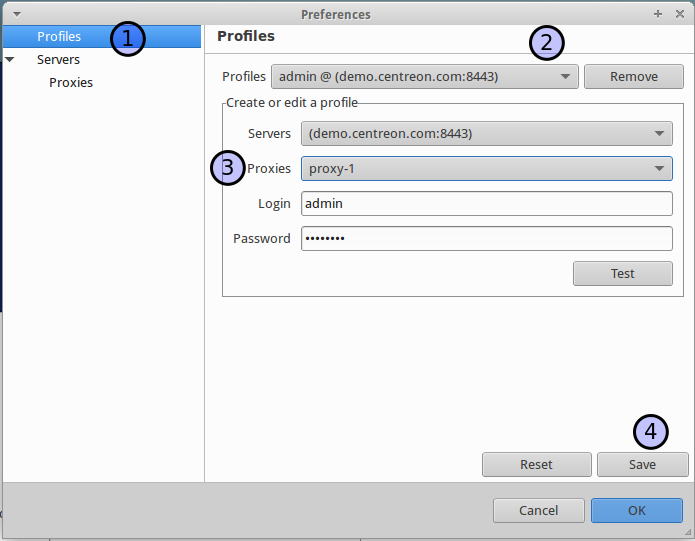

  • On the left panel select “Profiles” (1)
  • Select the profile which needs a proxy (2)
  • Add the previously created proxy (3)
  • Click “Save”
  • Then click “OK”
../../_images/desktop_client_add_proxy.png

Everything is now configured !
