Report Items

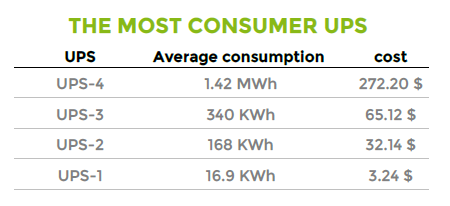

L2_12002_power-consumption-by-ups-Table

Description: Table displaying the most consumer UPS

../../_images/power-consumption-table.png Report parameters
One-hostgroupID
liveserviceID
hostcategoryID
servicecategoryID
metricNAME
topN

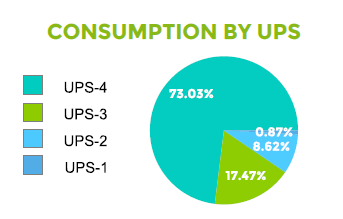

L2_12002_power-consumption-distribution-by-ups-Pie

Description: Pie displaying the consumption repartition by UPS

../../_images/power-consumption-pie.png Report parameters
One-hostgroupID
liveserviceID
hostcategoryID
servicecategoryID
metricNAME
topN

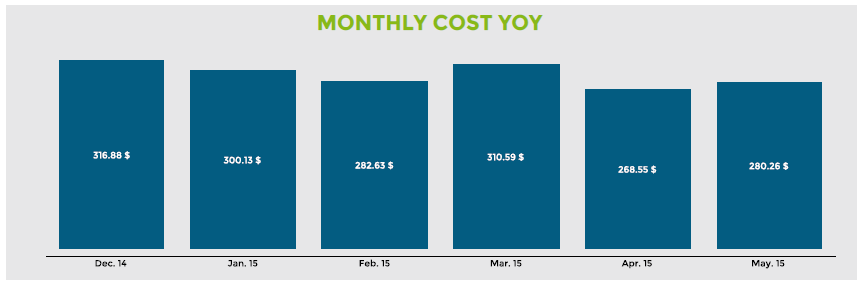

L2_122000-cunsommation-evolution-by-month-graph

Description: Graph displaying the monthly cost YoY

../../_images/power-consumption-evol.png Report parameters
One-hostgroupID
liveserviceID
hostcategoryID
servicecategoryID
metricNAME
prix_kwh

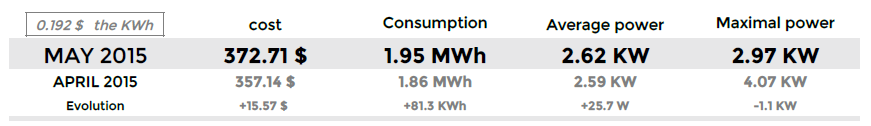

L2_122002_consommation_N-Nm1-table

Description: table displays the cost, the consumption, the average power and the maximal power reached on the month. A reminder of these values on the previous month and the evolution.

../../_images/power-consumption-n-nm1.png Report parameters
One-hostgroupID
liveserviceID
hostcategoryID
servicecategoryID
metricNAME
prix_kwh

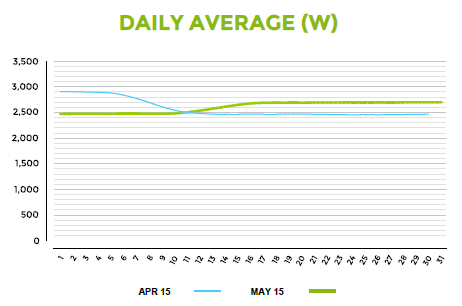

L2_122002_power-distribution-by-day-graph

Description: graphs diplay the average power used per day of month and a comparaison with the previous month

../../_images/power-dist-day-graph.png Report parameters
One-hostgroupID
liveserviceID
hostcategoryID
servicecategoryID
metricNAME

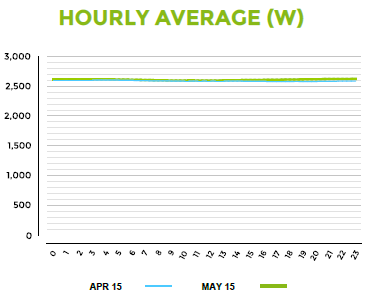

L2_122002_power-distribution-by-hour-graph

Description: graphs diplay the average power used per hour of day and a comparaison with the previous month

../../_images/power-dist-hour-graph.png Report parameters
One-hostgroupID
liveserviceID
hostcategoryID
servicecategoryID
metricNAME
