Configuration

ACLs

When you first install Centreon MAP, only Centreon administrators may configure ACLs.

Centreo Map handles ACLs by the ACL groups defined in Centreon. You cannot configure an ACL on user-by-user basis.

Add / remove new administrators

You can decide which ACL group contains Centreon MAP administrators.

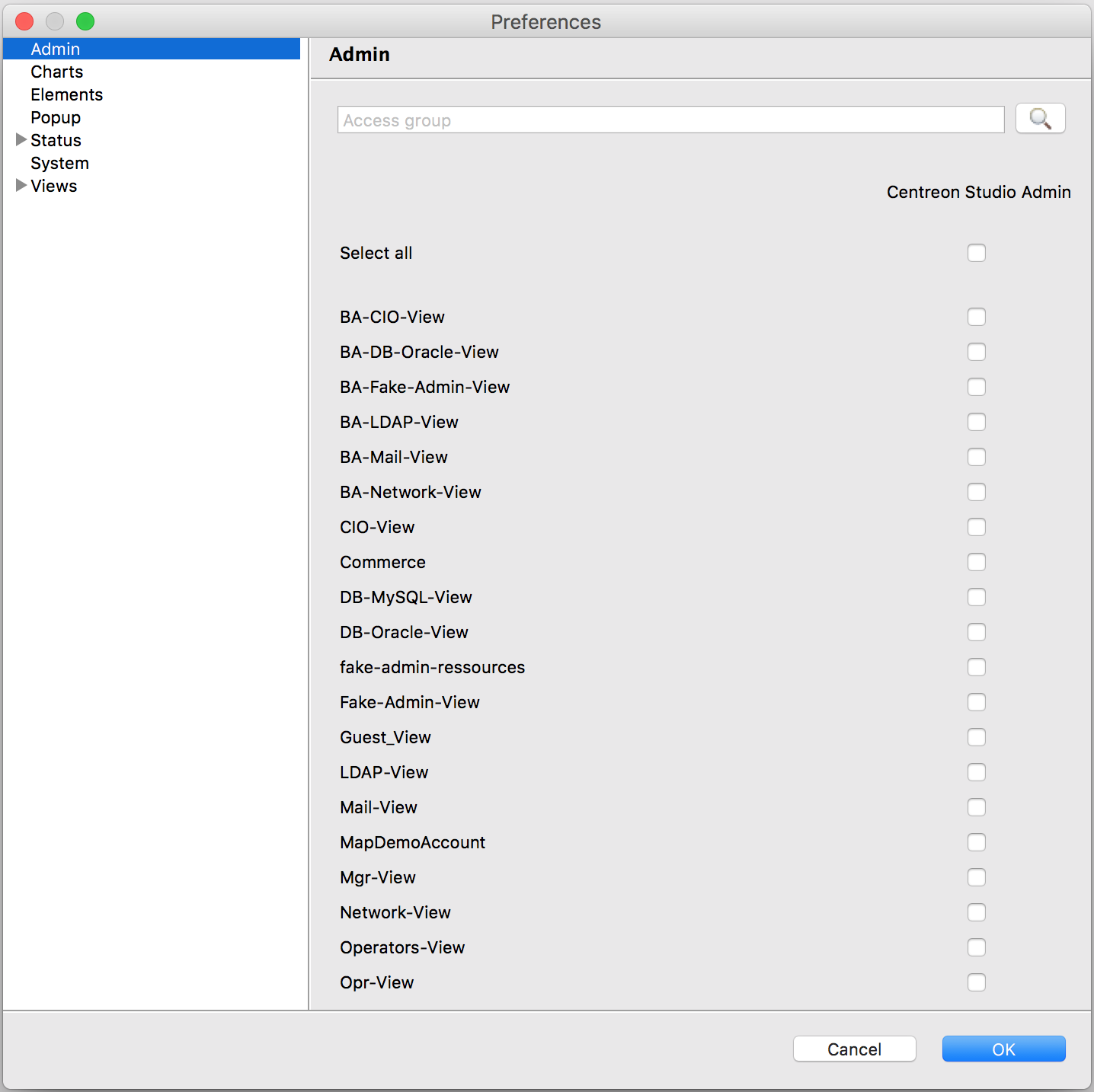

Go to Preferences > Preferences then select Admin.

../../_images/admin_preference_page.png

Assign specific rights to certain users

You can allow ACL groups to create, modify or delete views from the desktop client.

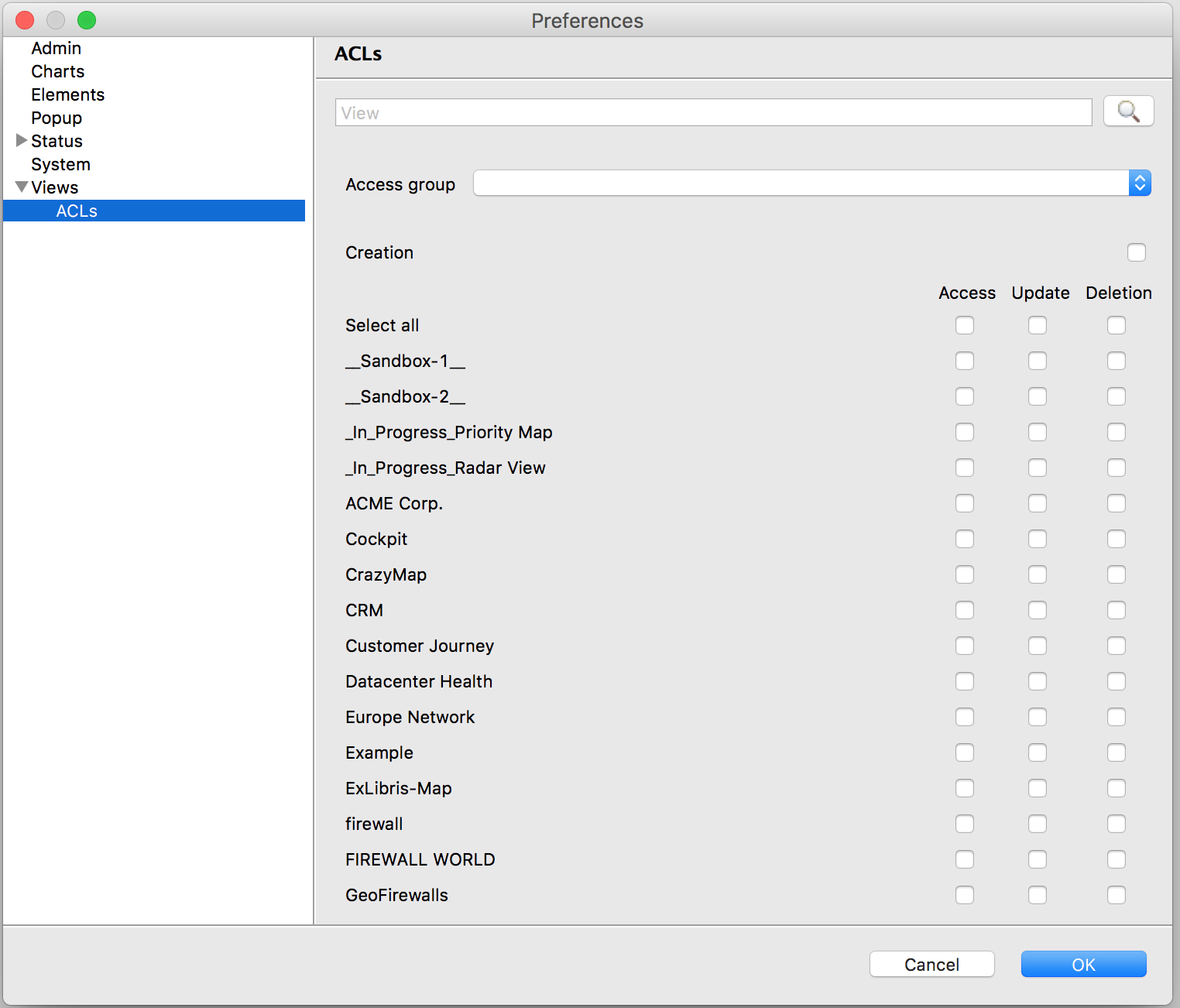

Go into Preferences > Preferences and then select Views > ACLs.

../../_images/acl_views_preference_page.png

Select, from the list, the ACL group you want to configure. Then, for each view, define the specific rights to attribute.

Loading / unloading disabled resources

You can decide whether to load disabled resources into Map. If you do (which is the default configuration), all disabled resources will appear in the resource list. You will also be able to use them in your maps.

They will have no status and appear as shown in the following screenshot:

../../_images/disabled-resources.png

You can change this result by editing the /etc/centreon-studio/studio-config.properties file and adding the following line:

resource.load.enabled.only=true

Note

Be sure to restart the Centreon MAP server after modifying the configuration files (systemctl restart tomcat).

Define views & status computation parameters

What’s an inherited status ?

An inherited status is a Centreon Map custom status associated to some objects that is based on the worst status of its children, here are the rules:

  • A host has two statuses: its own status (up/down/pending) and an inherited status that is based on the worst state of its services.

  • A hostgroup only has an inherited status corresponding to the worst status of its children (hosts, services)

  • A servicegroup has only an inherited status: the worst status of its children (services)

  • A container has only an inherited status: the worst status of its children (hosts, services, meta-services, hotsgroups, servicegroups, BA, widgets)

Inherited status customization

Centreon Map server gives you the possibility to customize how this inherited status is computed & rendered in views. You may use the following parameters to adapt the behavior of inherited status computation to your use case:

Parameter

Possible value

Default value

Description Version

drilldown.useHardState

true or false

false

Only use hard state value for inherited status propagation

drilldown.ignoreElementInDowntime

true or false

false

Do not propagate status for resources in downtime

drilldown.ignoreElementAcknowledged

true or false

false

Do not propagate status for acknowledged resources

drilldown.ignoreSeveritySuperior

integer

0

Do not propagate status for resources having severity superior to this value

gate.useResourcesAccess

true or false

true

Should Centreon Map consider resources ACL when calculating inherited status of view content

example: drilldown.useHardState = false

Specificity of gate.useResourcesAccess: Settings this parameter to “false” may highly improve Centreon Map performances, here is why:

  • gate.useResourcesAccess = false: all users see the same status & same resources in views, no matter the ACL ressources they have, they’re ignored. In that case, be careful who you’re giving access to views

  • gate.useResourcesAccess = true: users see different status & views regarding resources ACLs (decrease performance because you need to have one instance of each view for each users)

To configure these parameters you need to edit the following Centreon MAP server configuration file (modify or add missing parameters), then restart tomcat:

$ vim /etc/centreon-studio/studio-config.properties
$ systemctl restart tomcat

Highlighting problems

Note

This property will only apply to the user who modifies it on the desktop client.

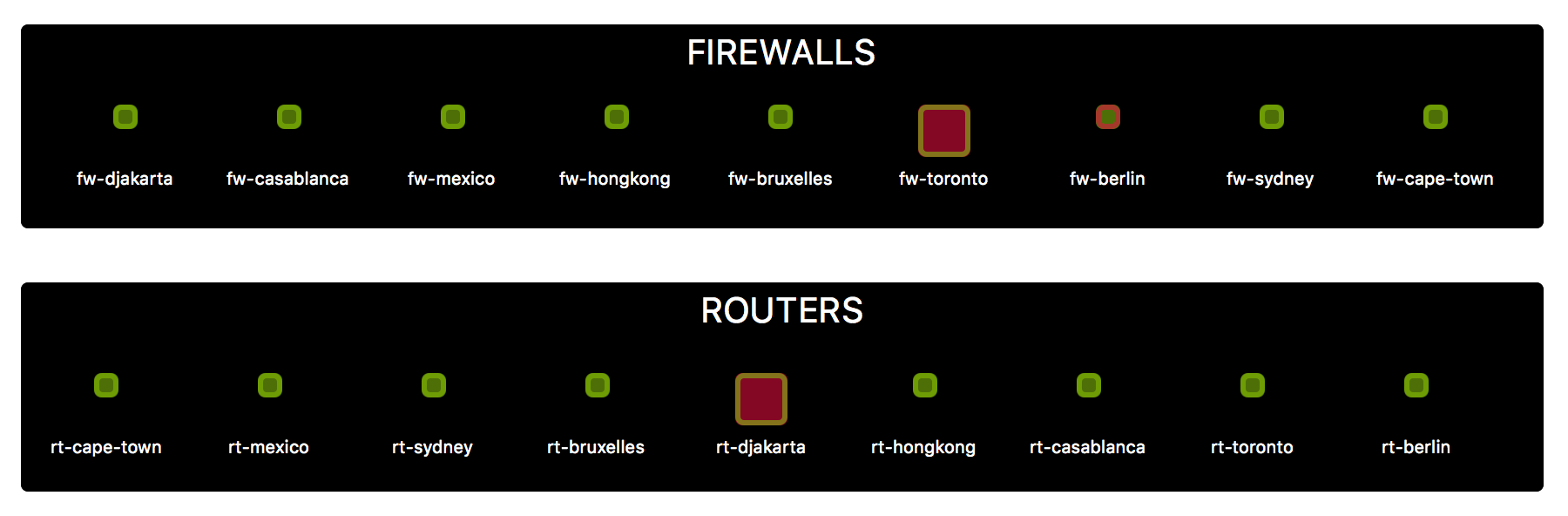

You can change the size of elements according to their status as a way of highlighting a problem. This only works when elements are expressed in the geometric style.

../../_images/guide_object_ratio_example.png

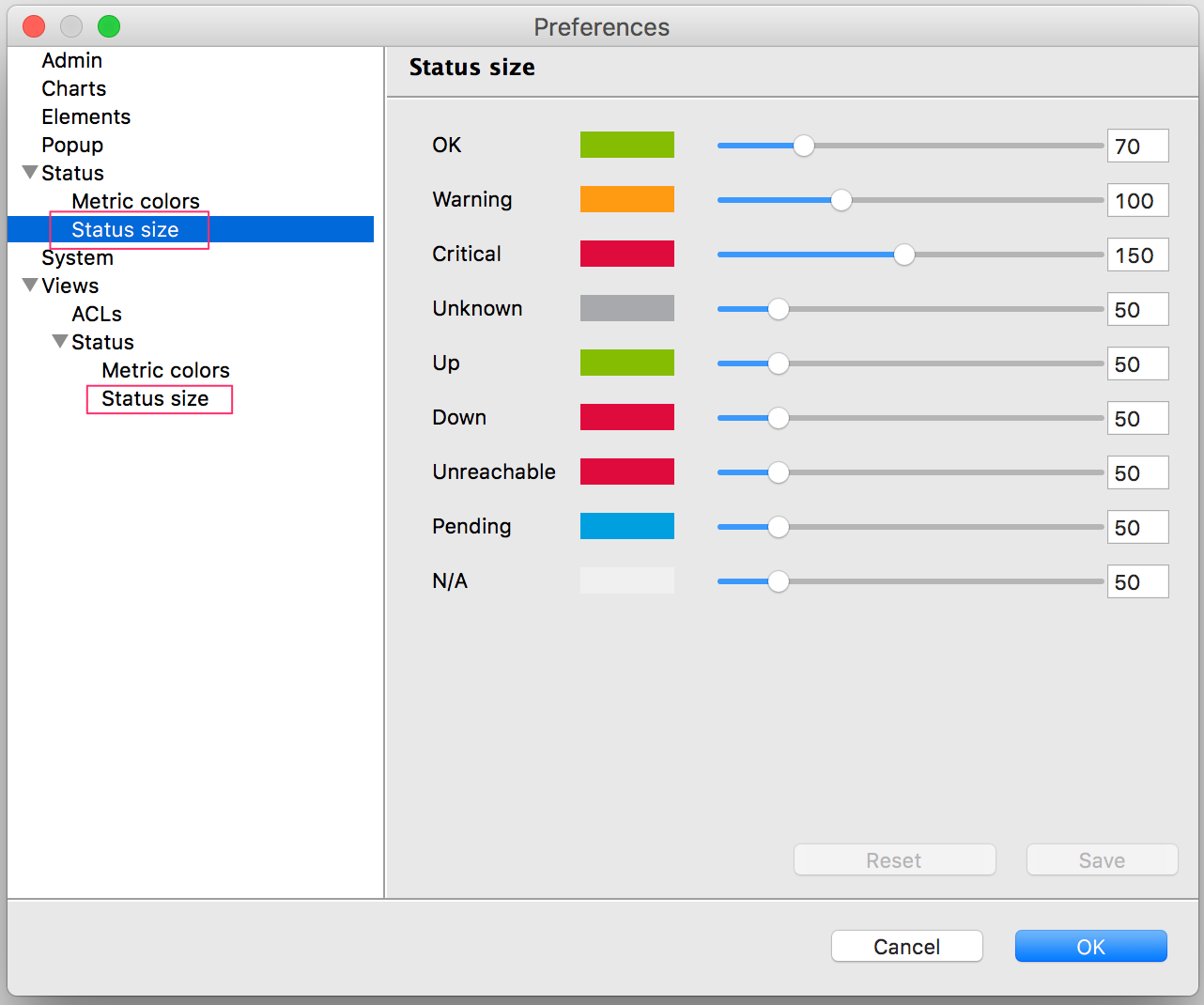

To use this feature, edit the Status size properties in the desktop Preferences. Go to Status > Status size to configure it globally or to Views > Status > Status size to configure it at the view level.

../../_images/guide_ratio_preferences.png
