Typical metric performance day

Description

This widget displays a typical 24-hour day of activity for a particular metric.

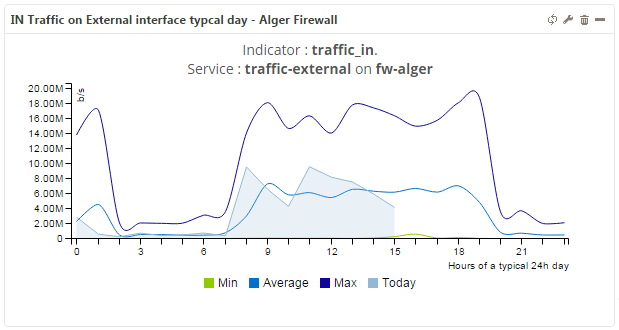

../_images/mbi-typical-performance-day.png

Parameters

Menu description

  • Select the service: Select the host followed by the service.

  • Type the name of the metric (one metric only): Enter metric pertaining to a service.

  • Base: Base for division (1000 or 1024).

  • Chart type: Indicate type of graph.

  • Refresh Interval (seconds): Sets automatic refresh time for widgets.

Example

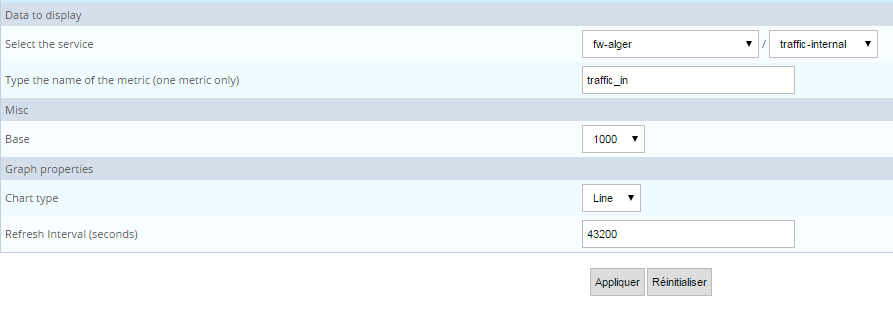

../_images/mbi-typical-performance-day_param.png
