Report Items¶

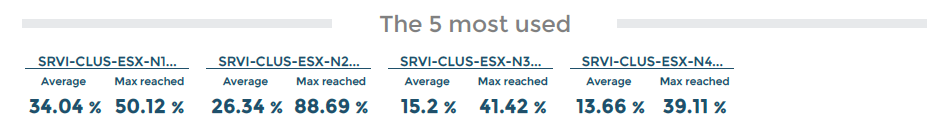

122000_CPU_top_used¶
Description: Graph displaying the TOP 5 of CPU usage on ESXs.
|
Report parameters |
CPU_servicecategoryID (based on servicecategoryID but renamed) |
|

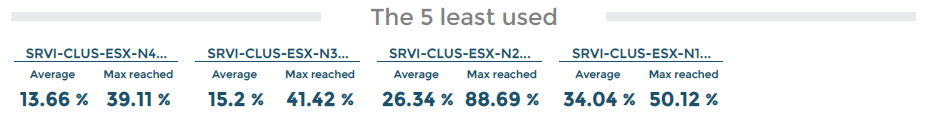

122000_CPU_bottom_used¶
Description: Graph displaying the Bottom 5 of CPU usage on ESXs.
|
Report parameters |
CPU_servicecategoryID (based on servicecategoryID but renamed) |
|

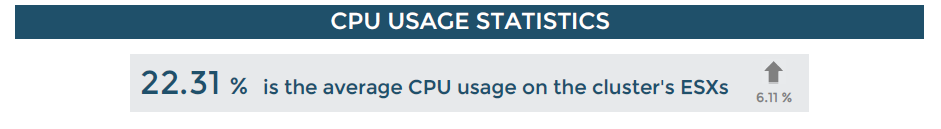

122000_CPU_global_statistics¶
Description: Object displaying the global CPU usage on ESX’s cluster.
|
Report parameters |
CPU_servicecategoryID (based on servicecategoryID but renamed) |
|

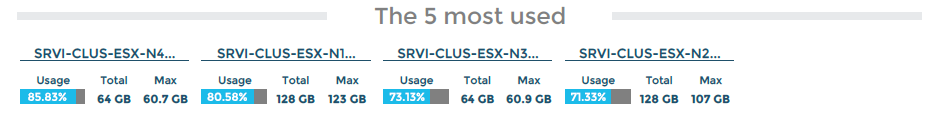

122000_Memory_top_used¶
Description: Graph displaying the TOP 5 of Memory usage on ESXs.
|
Report parameters |
Memory_servicecategoryID (based on servicecategoryID but renamed) |
|

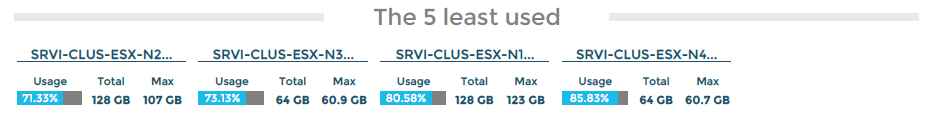

122000_Memory_bottom_used¶
Description: Graph displaying the Bottom 5 of Memory usage on ESXs.
|
Report parameters |
Memory_servicecategoryID (based on servicecategoryID but renamed) |
|

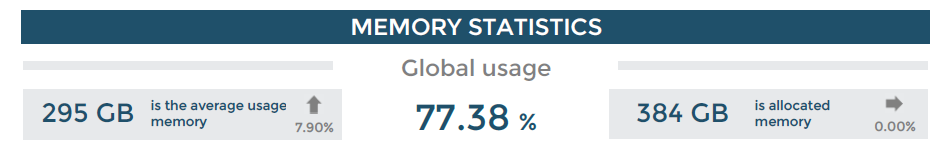

122000_Memory_global_statistics¶
Description: Object displaying the global Memory usage on ESX’s cluster.
|
Report parameters |
Memory_servicecategoryID (based on servicecategoryID but renamed) |
|

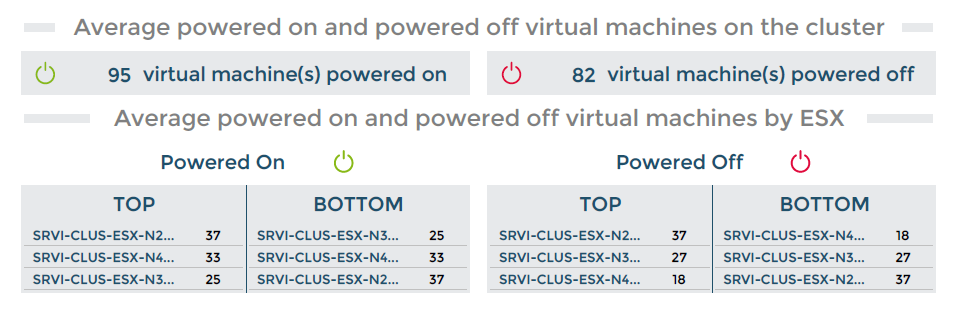

122000_VM_hosting¶
Description: Graph displaying the TOP and the bottom of powered on and powered off VMs on ESXs.
|
Report parameters |
VMcount_servicecategoryID (based on servicecategoryID but renamed) |
|
